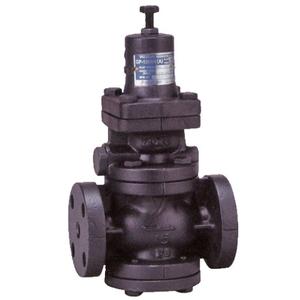

進口減壓閥
一、進口減壓閥
品牌：美國歐可OKE
進口減壓閥，Hot water pressure reducing valve，是指用于水，油品，氣體介質，將介質流體的閥前壓力減到并穩定在需要的介質流體壓力值。主要由調節彈簧、膜片、活塞、閥座、閥瓣等零件組成
。利用膜片直接傳感下游壓力驅動閥瓣，控制閥瓣開度完成減壓穩壓功能。
進口減壓閥在城市建筑、高層建筑，化工廠，發電廠，的冷熱供水，油品，氣體系統中，可取代常規分區各種管道，節省設備，起減壓穩壓作用。
本產品調壓、穩壓動作平穩，適用于水和非腐蝕性液體介質的管路。
一、進口減壓閥主要技術參數和性能指標
公稱壓力(Mpa) 1.0 1.6 2.5 4.0 6.4
殼體試驗壓力(Mpa)* 1.5 2.4 3.75 6.13
密封試驗壓力(Mpa) 1.0 1.6 2.5 5.27
最高進口壓力(Mpa) 1.0 1.6 2.5 6.4
出口壓力范圍(Mpa) 0.2-0.8 0.2-1.0 0.4-1.6 0.5-5.0
滲漏量 0
工作溫度 0℃-250℃
口徑：DN10-DN600
*：殼體試驗不包括膜片、閥蓋
二、進口熱水減壓閥主要零件材料
零件名稱 零件材料
閥體 閥蓋 底蓋 HT250，WCB，不銹鋼304或者316
閥座 2Cr13
閥瓣 2Cr13
閥桿 2Cr13
缸套 2Cr13/25(鍍硬鉻)
活塞 2Cr13
O型圈 丁腈橡膠
密封圈 丁腈橡膠
膜片 夾織物丁腈橡膠
調節彈簧 60Si2Mn
三、進口減壓閥 部分業績
廈門水務局、三亞文華東方酒店、香格里拉臺南遠東國際大飯店、波士頓文華東方酒店、布拉格凱賓斯基、迪拜塔、上海漢華水處理公稱有限公司、臺北101大廈、上海環球金融中心、香港環球貿易廣場
蒙特里凱悅度假村、曼谷香格里拉大酒店、波爾托羅曰凱賓斯基酒店、巴黎瑪?shù)氯R娜凱悅酒店、大連水務集團、布達佩斯卡爾維努斯凱賓斯基酒店、開能集團、湖南永清投資集團、廊坊多元水處理集團
本公司產品可以按客戶規格\型號\壓力\溫度\材質定制
美國歐可OKE世界著名品牌
Imported pressure reducing valve
First, the imported pressure reducing valve
Brand: US Ouke OKE
The inlet water pressure reducing valve refers to a water, oil, and gas medium that reduces the pre-valve pressure of the medium fluid to a desired medium fluid pressure value. Mainly composed of adjusting spring, diaphragm, piston, valve seat, valve disc and other parts. The diaphragm directly senses the downstream pressure-driven valve flap, and controls the valve opening to complete the decompression and voltage stabilization function.
Imported pressure reducing valves can replace conventional pipelines in urban buildings, high-rise buildings, chemical plants, power plants, hot and cold water supply, oil products, and gas systems, saving equipment and reducing pressure.
This product has stable voltage regulation and stable voltage regulation, and is suitable for pipelines of water and non-corrosive liquid medium.
First, the main technical parameters and performance indicators of imported pressure reducing valves
Nominal pressure (Mpa) 1.0 1.6 2.5 4.0 6.4
Shell test pressure (Mpa)* 1.5 2.4 3.75 6.13
Seal test pressure (Mpa) 1.0 1.6 2.5 5.27
Maximum import pressure (Mpa) 1.0 1.6 2.5 6.4
Export pressure range (Mpa) 0.2-0.8 0.2-1.0 0.4-1.6 0.5-5.0
Leakage 0
Working temperature 0°C-250°C
Caliber: DN10-DN600
*: Shell test does not include diaphragm, bonnet
Second, the main parts of imported hot water pressure reducing valve materials
Part Name Part Material
Body bonnet bottom cover HT250, WCB, stainless steel 304 or 316
Seat 2Cr13
Disc 2Cr13
Stem 2Cr13
Cylinder liner 2Cr13/25 (hard chrome plating)
Piston 2Cr13
O-ring nitrile rubber
Sealing ring
Diaphragm clip fabric nitrile rubber
Adjustment spring 60Si2Mn
Third, the imported pressure reducing valve
Xiamen Water Affairs Bureau, Sanya Mandarin Oriental Hotel, Shangri-La's Far Eastern Plaza Hotel, Boston Mandarin Oriental Hotel, Prague Kempinski, Burj Khalifa, Shanghai Hanhua Water Treatment Co., Ltd., Taipei 101 Building, Shanghai World Financial Center, Hong Kong International Trade Plaza
Hyatt Regency Monterey, Shangri-La Hotel, Bangkok, Kempinski Hotel Portorož, Hyatt Regency Paris Madeleine, Dalian Water Group, Kempinski Hotel Calvinus Budapest, Kaineng Group, Hunan Yongqing Investment Group, Langfang Multi-Water Treatment Group
The company's products can be customized according to customer specifications\model\pressure\temperature\material
US Ouke OKE world famous brand
|
